If your remote currently operates a group of motorized shades on the same channel, you will first need to put all other shades into sleep mode to prevent any unwanted adjustments.


NOTE:  Sleep mode will time out in approximately 15 minutes.


STEP 1

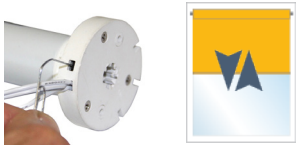

Press and hold the motor head program button until the shade jogs one time, then release (approximately 3 seconds).    The motor head will blink green.




STEP 2

Quickly press and release the motor head program button.   The shade will jog two (2) more times confirming in sleep mode.




You will need to repeat for each shade on the group channel.


Once all adjustments are complete, you will need to deactivate sleep mode.  To exit sleep mode, quickly press and release the motor head, the shade will jog once confirming awake.
