Zigbee: How Do Pair A Zigbee Module and Remote To A RTS Glydea Motor That Already Has Set End Limits?

Modified on Wed, 20 May at 2:20 PM

To add a Zigbee module to a RTS Glydea Ultra motor that already has limits and pair it to a Zigbee remote, please follow the instructions below:

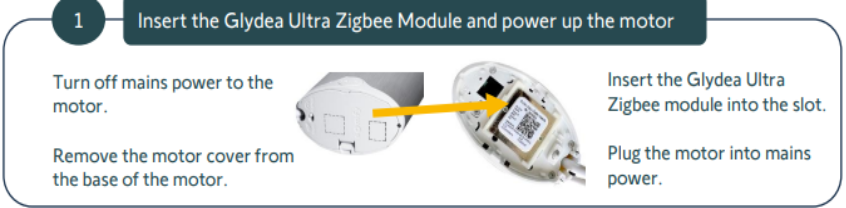

Before beginning, disconnect power to the motor, then remove the cover from the base of the motor and insert the Zigbee module into the slot. After the module has been installed, connect power to the motor.

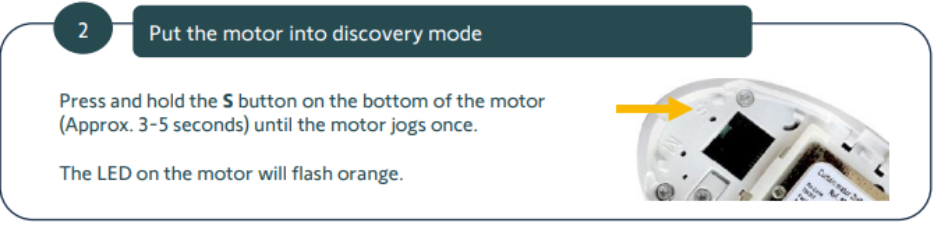

Put the motor into discovery mode by holding the “S” button on the bottom of the motor until the motor jogs once. After the motor jogs, the LED on the motor should begin flashing orange.
Ensure the remote is within 60cm, or about 2 feet, of the motor head. Briefly tap (less than .5 seconds) the programming button on the back of the remote. The LED on the remote will begin flashing orange. It can take up to 30 seconds for the next step to take effect. Do not touch or intervene with the equipment during this time.
When the pairing is successful, the LED on the remote will turn green and the motor will jog once. Please note that any RTS controls that were previously paired to the motor will no longer work.
